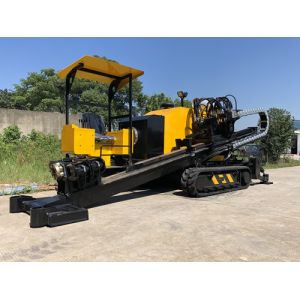

    Easy To Control Underground Horizontal Boring Machine Durable And Reliable

    Ask Lasest Price
    Brand Name : STETON
    Model Number : S200
    Certification : ISO9001
    Supply Ability : 10 UNITS PER MONTH
    • Product Details
    • Company Profile

    Easy To Control Underground Horizontal Boring Machine Durable And Reliable

    Horizontal Directional Drilling Machine - S200 For narrow space Pipe laying


    I KEY point:


    Mini machine Body;


    Fast travelling and tracking speed;


    Powerfull.


    II Features:


    Equipped with Cummins 110kw engine, large power, stable performance, lower fuel consumption, lower noise, more suitable working in city area.
    Power head thrust and rotation adopts cycloid motor from Eaton, with large torsion, stable performance. Rotation have two speed , drilling faster and more torque; Thrust have 3 speed, let the work finished more faster.
    American style surface, looks so powerful.
    Simple electric circuit design, low failure rate, convenient maintenance.
    Equipped with φ60×3000mm drill rods moderate machine size adapts to narrow and small working area and high efficient construction as well.
    Mud flow control system, can depends customer project save water.
    Auto anchoring system can be choose separate.

    III Specifications:


    Engine PowerKW110/2200
    Max Thrust forceKN200
    Max Pullback forceKN200
    Max TorqueN.M6000
    Max Rotary speedRpm180
    Max carriage speedm/min38
    Max Mud pump flowL/min200
    Max Mud pressureMpa7±0.5
    Main machine sizemm5880x1700x2150
    WeightT7
    Diameter of drilling rodmmφ60
    Length of drilling rodm3
    Max diameter of pullback pipemmφ150 - φ700
    Max construction lengthm300
    Incidence Angle°10~22
    Climbing angle°14
